Reminder

  “Call me back in 10 minutes.” “You have a meeting at 10h30.” “You should check on the garden-watering every half hour.” “Every 5 minutes, the pancakes need to be either flipped, or taken from the pan and new ones put in.”

  Our lives are driven by time, but one can forget. This is especially true when at the computer, as one can easily get ‘lost in the box.’ How to cope?

  As a learning exercise, using Visual Basic 6, bøB has written a program to help. It calls attention to itself, by using the computer bell, at an appropriate time, whether it be entered as ‘time-from-now’ or ‘time-of-day,’ or on a recycling-timer basis.

  The program, Reminder_RwcS.exe (124K, running under the Windows platform), is available for download, as is the source code.

  If in trying to run it you receive errors, such as missing a DLLs, you may also need one or more of the following to upgrade your system:

  The system will complain if one or more of these files is needed. The following was first written, assuming that your operating system is Win'95, and is in installed at C:\Windows – but it might be Win'07 at D:\WINNT. Make changes as appropriate.

• If it is MSVBMV60.dll that is missing, download it and put it into the System32 directory.
• If it is MSSTDFMT.dll that is missing, it must be installed.
  • For Win'95:
    • Put the file in the C:\Windows\System (not System32) directory;
    • Then, using the Start > Run > Open command line, run the command: Regsvr32 C:\Windows\System\msstdfmt.dll.
  • For Win'07-64:
    • Put the alternate version in the C:\Windows\System (not System32) directory;
    • Start > {type}cmd > {Right-Click on}cmd.exe, {and select}Run as Administrator > {Then, at the command prompt, type}Regsvr32 C:\Windows\System\msstdfmt.dll.
• If it is other files that are missing, try running DCOM95.exe, DCOM98.exe, or the likes, as would be appropriate for your system.

  The following links are designed leave this window open (if your browser supports it), without you having to use the right-click>Open in new window command.

Screen Shots

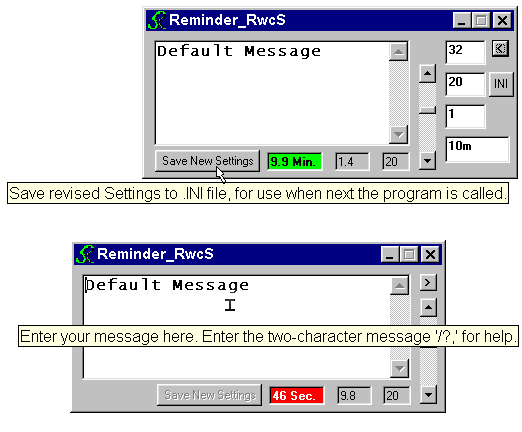

  Here is a couple of screen-shots of the program, running. An early version of the HELP information follows:

HELP

  This program is designed, on being started, to beep and display a message. After that, it will wait a period of time, and then commence regular beeping. The message, the wait period, and the beep rate are adjustable (by command-line parameters and/or .INI file information), and are adjustable at Run-Time.

  With each beep, the title toggles between Reminder_RwcS and text from the Message.


  There are three classes of ‘Special Message’ which access additional functions.

• The ‘Special Message’ /? will re-build this combination HELP and .INI file.
  • Note that this message is two characters long, containing neither spaces nor line-feed characters.
• ‘Special Messages’ beginning Start: may be entered while Delayed Onset of Beeping implemented. Entering the message will turn the Message area green, (as will editing it if it was entered before Delayed Onset was implemented). When the timer passes zero, the system will try to run the program identified in the text following the Start: message. Command-line parameters may be included as part of the text.
  • The item to be launched must be referenced as an executable (referencing a file that has an extension to which a program is associated is not good enough). Long-file-name (and directory-name) format is acceptable, as are short file-names. Do not use quotation marks, even if a long file name includes spaces. Command-line parameters may follow the command name.
• Another class of ‘Special Message’ consists of ones beginning ReRun:, and containing Off=## and On=##, where ## are numbers with associated unit. Entering a valid message will turn the message-window yellow. After the passage of the Off-Time, the message-window will turn orange and beeping will commence for the On-Time. After the On-Time, the message-window will revert to yellow and the cycle will repeat ad nauseam.
  • Individual time-unit designators may be placed after each number or, a common unit may be placed after the second number. Supported units are Seconds, Minutes and Hours.
  • Times may be entered in decimal fractions (0.05 minutes = 3 seconds). Performance across seasonal change of time-lune is not verified. A duration longer than about 5.671 × 10^36 minutes (a very long time) is disallowed.
  • The On-Time must be appropriately long for the Beep-Interval, if beeping is to be heard. The sum of the intervals must be appropriately long if the counter (lower left corner of the Message Window) is to be accurate. (NOTE: Regardless of this precaution, counting becomes inaccurate somewhere beyond the first trillion cycles.
  • The title is not changed while beeping, unless minimised. In this case, the title includes the colour, and the portion of the message following a second :, within the message.

  The vertical scrollbar adjusts the beeping frequency. Beside the base of the scrollbar is a box showing the setting of the bar. The default is 20, in a suggested range of 1 to 32.

  The next box over is a counter, which may be seen to increase from 0.1 to the value of the scrollbar. On reaching the scrollbar value, it will reset to 0.1. Since the counting rate, as well as the maximum count, is dependent on the scrollbar setting, the adjustment is roughly logarithmic.

  Another box at the bottom shows in white on red, the total time elapsed since beeping commenced − or, when Deferred Onset is implemented, shows in black on green, how soon beeping is to commence. This value is updated with each zero-crossing of the counter. Beeping occurs when this data is updated.


  The ‘Save New Settings’ button will (if allowed) re-write the Message portion of the .INI file with the current text in the message box. Any line-break characters will be converted to spaces before writing. If the Additional Control Area (discussed below) is open, additional information is written. The Slider Values (Minimum, Maximum, Setting) will be written. If Start-Delay is implemented, or if the delay is set to a specific time, it will be written. If write-permission is denied, a message advises of the problem, and the message to have been saved is preserved.

• This option may not be available if there are no changes to be written.


  Above the slider is a button to open the Additional Control Area, wherein the slider settings may be altered digitally. The same button will close the Additional Control Area. With this area open, (as previously noted) the ‘Save New Settings’ button will also write these current values to the .INI file.

  With the Additional Control Area open, one may also access a button labelled INI. This will try to edit the current .INI file, using NotePad, or whatever [[Drive:\]path\]editor is noted at the INI_Edit= option in the INI file. (Yes, this can be a catch-22 situation.)


  There are four possible sources for the settings of this program: Default; .INI file; Command Line Parameters; Run-Time changes.

• Program Internal Default Settings are immutable by the user.
• Valid settings imported from the .INI file, will over-ride Program Default Settings.
• Valid Command-Line Parameters, will over-ride .INI file information.
• Changes may also be made at Run-Time.

Options for the .INI File:

  If you wish, you may delete the [HELP] . . . section of this file. You may also make changes and annotations to it. The [LeaveThisLine] must stay if .INI information is to be used, as must the identifier for any parameter being used. Data after the equals sign in each line of the [LeaveThisLine] section may be altered. Between the section headers of [LeaveThisLine] and [HELP], items may be shuffled.

  The text following Message=, up to the first line-break, will be displayed when the program is run.

  The value on the BeepIntervalSet= line (allowable value of 1 to 999, default 20) governs the beep interval.

  Values of BeepIntervalMax= and BeepIntervalMin= (1 to 999; Default-Min=1 and -Max=32) set the range of the slider.

  One of the Values StartDelaySec=, StartDelayMin=, StartDelayHrs= and StartDelayDay= (defaults of zero), or StartAtTimeOf= (default of ##h##), may be specified. The commencement of beeping will be delayed by the specified duration in seconds, minutes, hours or days, or will be delayed until the specified time. If multiple settings are made, StartAtTimeOf= will have precedence over any of the others. If StartAtTimeOf= is not specified, or is at its default value, the non-zero setting with the longest time-base has precedence.

• StartAtTimeOf= may be given a default value of ##h##, or left blank − or the line may be deleted if the function is not to be used. Garbled entries can cause midnight to be used as a StartAtTimeOf= value. Entries should follow these rules: Not containing ##, unless Default; Minimum length − three characters; First characters being hour (on 24-hour clock); Characters 4 & 5 (if present) being minutes. For uniformity with other entries (Command-Line options and Run-Time options), the separators of h is suggested. However, : may be used. A Trailing m may also be used.

  INI_Edit= is available to set the [[Drive:\]path\]editor to use for editing the INI file.


Options for the Command Line:

Command Line arguments may be used to control the program behaviour (message, timing, .INI [path\]name). Parameters not available from the Command Line are sought in the .INI file (of default name, if none was specified). Parameters not available there either, are set to default.


Allowable Command Line Arguments are:

[/?]

[[/t1=Timing1] [/t2=Timing2] [/t3=Timing3] or [/t=Timing]] and [[/ss=StartTimeDeferral in seconds] or [/sm=StartTimeDeferral in minutes] or [/sh=StartTimeDeferral in hours] or [/sd=StartTimeDeferral in days] or [/sa=StartTimeAt]] and [[/m=Message] or /f=File]]


• /? Regenerates this combination HELP and .INI file, and prefixes the displayed message with information as to whither the file was written. This process destroys any existing message saved on disc, but by doing a Save New Settings one may then restore the message. (If write-permission is denied -- suggestions are made on how to proceed.)

• ‘Timing1, 2, 3’ are numbers from 1 to 999, which set: the maximum beep frequency; the initial beep frequency; and the minimum beep frequency. Not all values need be specified.

• ‘Timing’ sets the initial beep frequency, and may be specified instead of Timing2.

• ‘Message’ is the message to display.

• ‘StartTimeDeferral’ is the time delay (in seconds, minutes, hours or days) between initiation of the program and commencement of regular beeping.

• ‘StartTimeAt’ is the clock-time, in six (or five) characters as ##h##m (or ##h##), (where # is any digit), at which the program is to commence regular beeping.

  • The hour marker character must be lower-case, not H.
  • Only the first /s?= specification is used.

• ‘File’ is the [[Drive:\]path\]file to substitute for the default .INI. Its specification may include spaces (as allowed by the long file-name format), and therefore must be placed last in the string.

• ‘Message’ is the message to be displayed. It too may include spaces, and therefore must also be placed last in the string.

  • If both /M= and /F= are specified, and if /M= precedes /F=, then the exception is well handled, although the .INI file location string is appended to the message. If /F= precedes /M=, then the .INI will not be found, as it is being looked for complete with the /M=. . . text as part of the path\filename.

Options at Run-Time:

With the program running, one may also make changes. The message may be re-written. The Beeping rate may be altered by moving the slider. A button above the slider may be used to open an Additional Control Area where settings for the Delayed Onset and all slider values are available. Enter Delayed Onset data as digits followed by the units (Seconds, Second, seconds, second, Sec, Secs, sec, secs, S, s; Minutes, etc.; Hours, etc.; Days, etc.). StartDelay has a maximum value of 32767 minutes (~3weeks). StartDelay may also be specified as a specific time, up to 24 hours in the future, in the format ##h## or ##h##m.

The ‘Save New Settings’ will write the current message to the .INI file. If the Additional Control Area is open, the Beep-Rate Control settings will be written as set, and if Onset is Delayed, the Onset Delay will be written as set. If there are no changes to be saved, this option may not be available.

• A message longer than 1024 characters will not be properly saved. A message longer than about a quarter-million characters may corrupt the INI file.

Illegal entries in the Additional Control Area will be highlighted in red. By closing and re-opening the area, one may reset the slider values to the latest acceptable values. If the Initiate Delay is in error, it will be reset to 15 seconds.

The latest version of this program may be available at www.wendygamble.com/RwcS/reminder/. Bugs and ideas for Upgrade may be submitted to Robert@WendyGamble.com.
